Thermoform Vacuum Packing Machine Structure

A thermoforming vacuum packing machine consists of a down film roll sheet feeder, up film roll sheet feeder, thermal heating unit, forming mold, vacuum system, sealing mechanism, cuter and scrap collecting bucket.

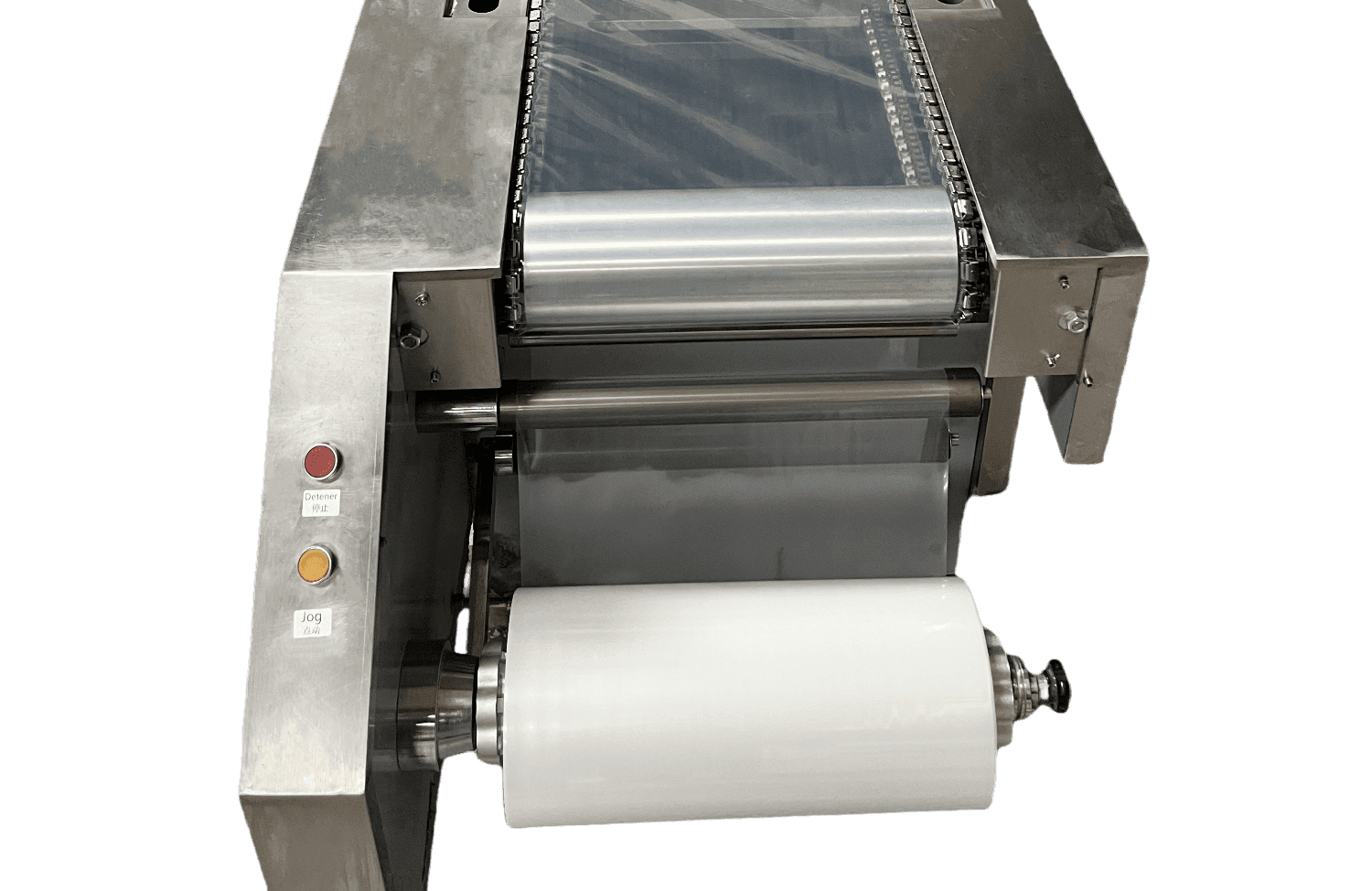

Thermal vacuum packer down film roll structure

Down film structure

Well designed tension regulating mechanisms ensure pre - formed plastic film in collect position,   precise alignment with the thermoformed cavities

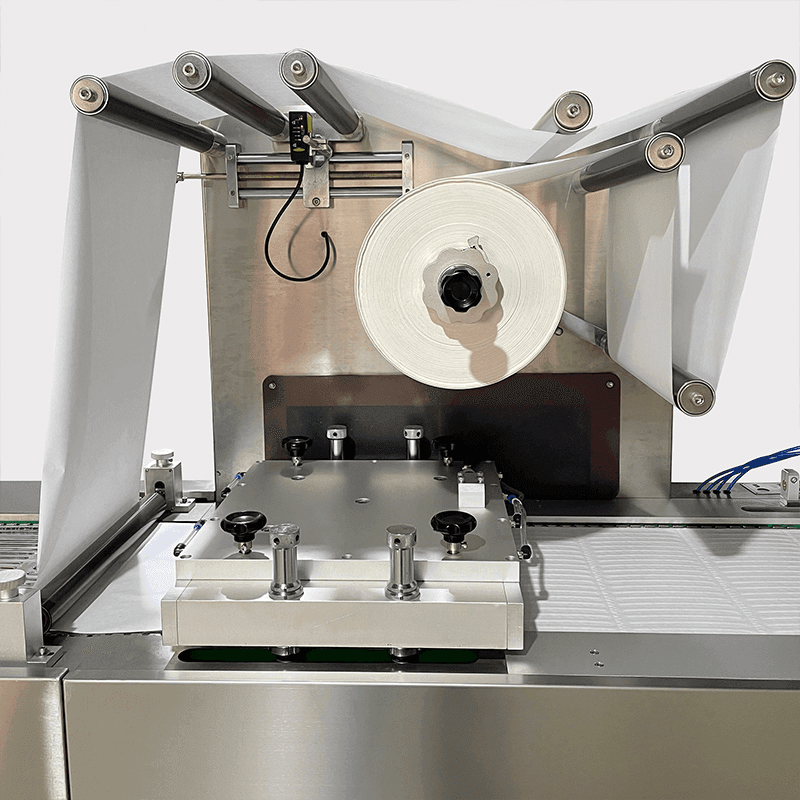

Thermoform vacuum packing top film structure

Top film structure

precision engineered top film device with designed adjustable tension device, ensure consistent feeding of the top film

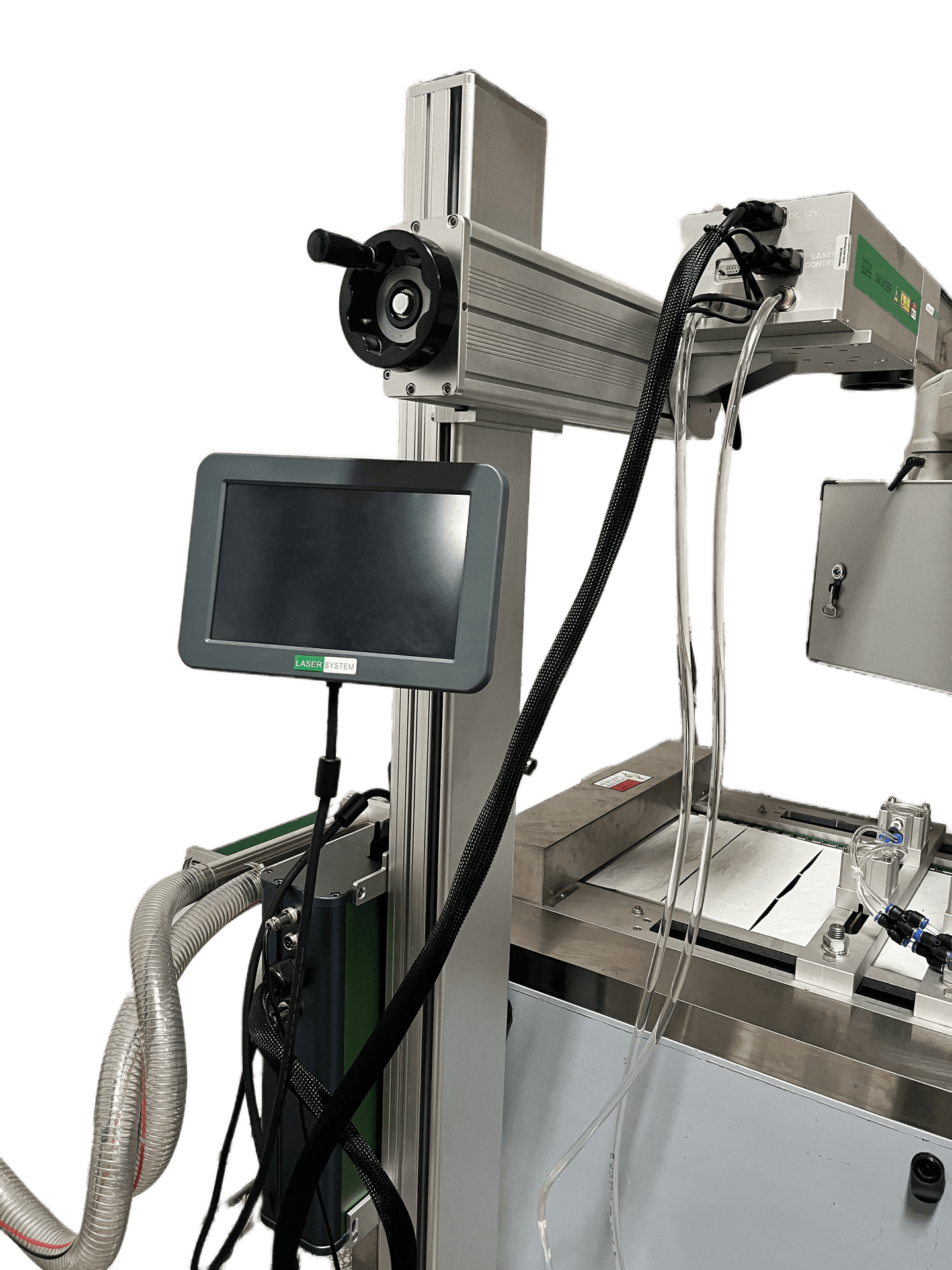

Thermoform vacuum packing laser code printer

Laser code printer

Gives higher readability mark,precise position, against abrasion last longer code on packaging, won't fade easily, no ink consumption. Laser printer is optional choice.

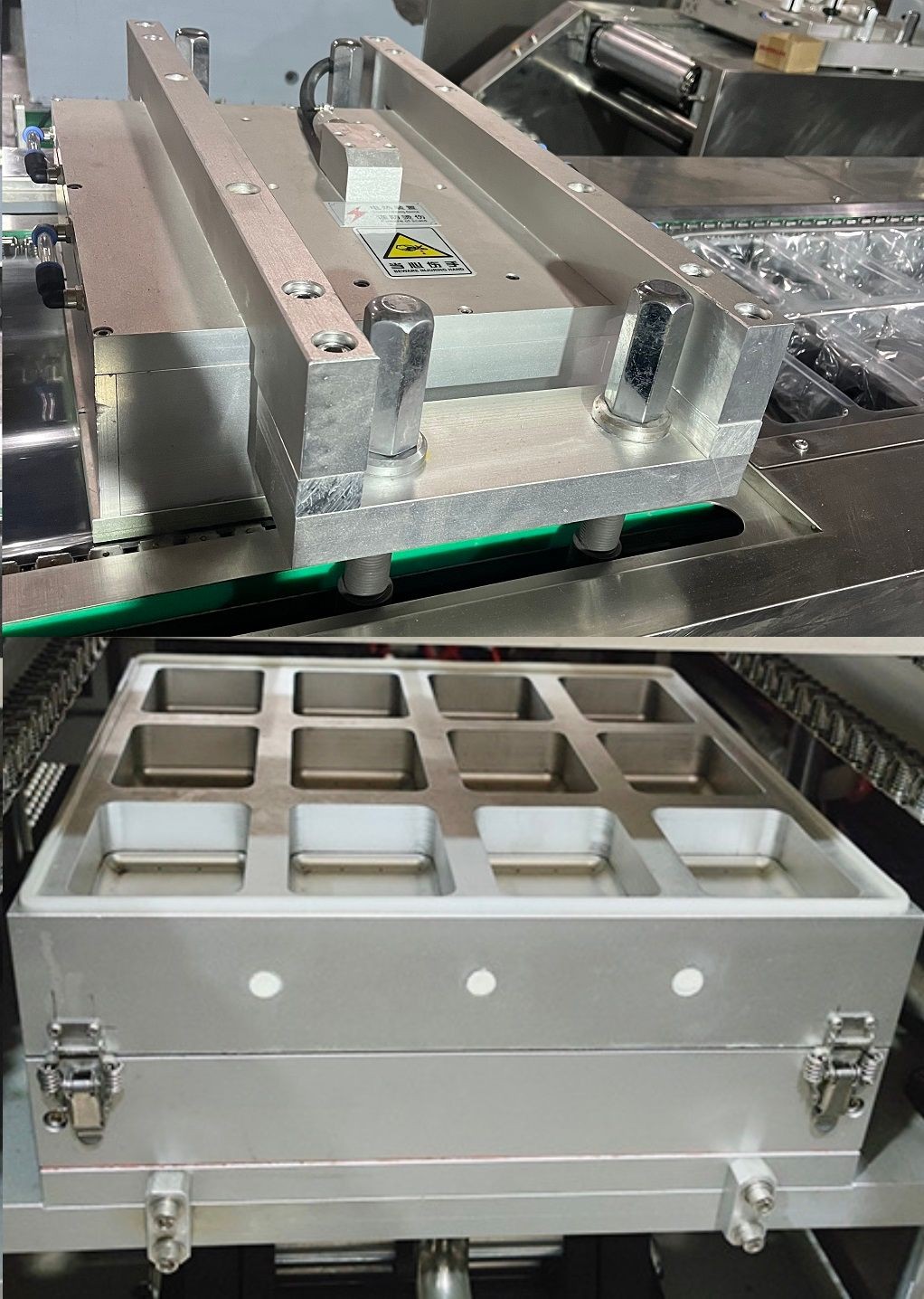

Thermoform vacuum machine quick and easy change mold

Quick and easy change mold

With quick changeover mold design, allow you to change a new product packaging in few minutes

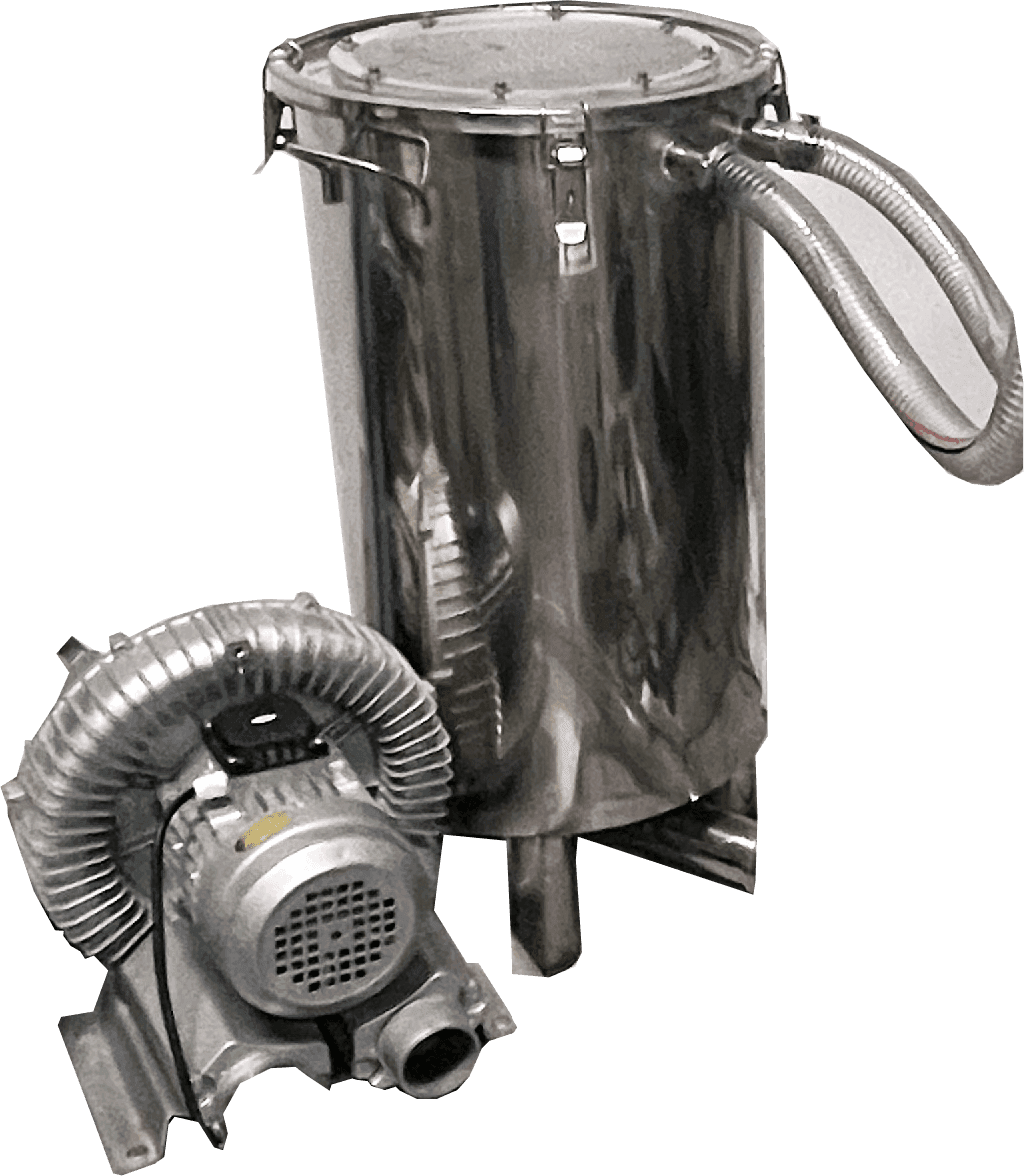

Thermoform vacuum packing machine innovation scrap collecting

Innovation scrap collecting

New design scrap collect bucket, bigger volume to  fix the replace frequently problem

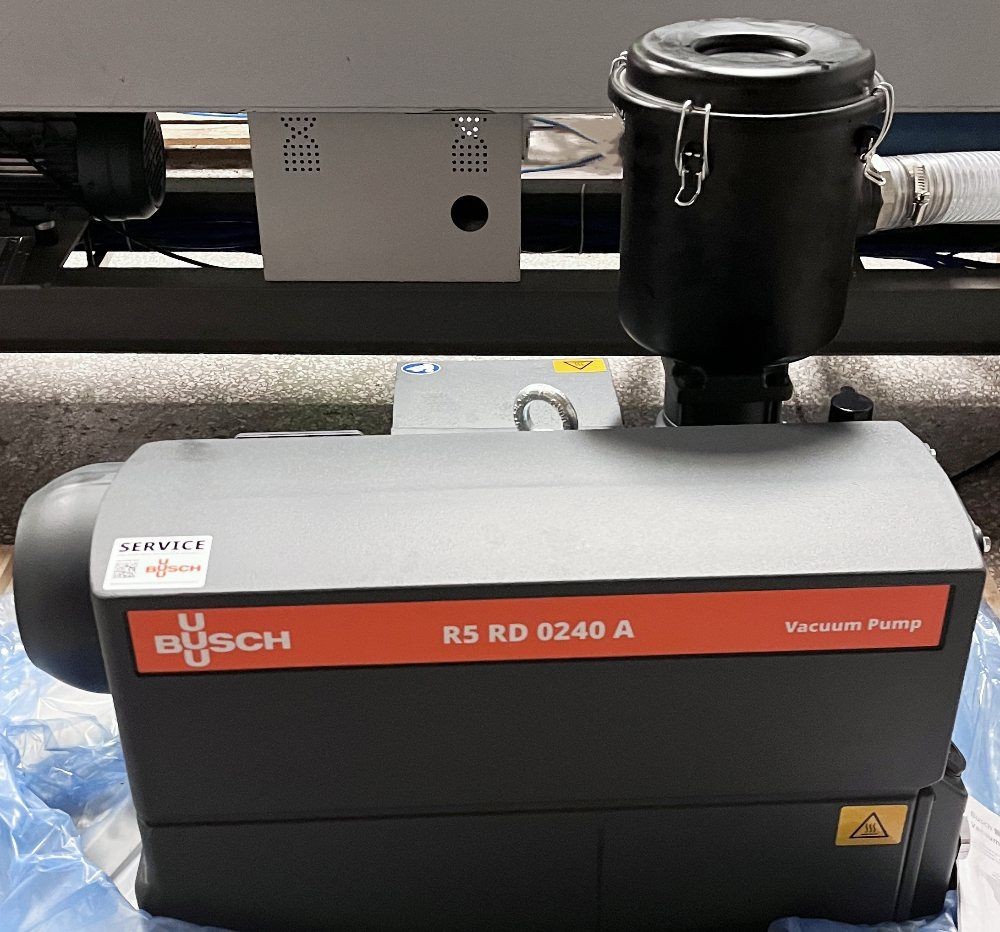

Thermoform vacuum machine with Busch vacuum pump

Busch vacuum pump

Adopt Germany Busch vacuum pump to ensure offer continuous and stable inflat air performance
